SUP-LDGR Electromagnetic BTU Meter

Supmea electromagnetic BTU meters accurately measure the thermal energy consumed by chilled water in British thermal units (BTU), which is a basic indicator for measuring thermal energy in commercial and residential buildings. BTU meters are usually used in commercial and industrial as well as office buildings for chilled water systems, HVAC, heating systems, etc.

  • Accuracy: ±2%
  • Electric conductivity: > 50μS/cm
  • Flange: DN15…1000
  • Ingress protection: IP65/ IP68
  • Product Features
  • Product Parameters
  • Product Introduction
  • High Corrosion Resistance

    Extremely resistant to corrosion and can measure almost any conductive liquid.

  • Flexible Installation

    On site, the range can be modified online according to the actual needs of the user.

  • Strong Anti-interference Ability

    Strong anti-interference ability, almost unaffected by external interference.

  • Measure The Diversity Of Liquid Types

    The requirement for measuring the unobstructed flow components and pressure loss free straight pipe section inside the pipeline is low. Has unique adaptability to slurry measurement.

 Product  Electromagnetic BTU meter
 Model  SUP-LDGR
 Diameter nominal  DN15 ~DN1000
 Accuracy  ±2%, (flow rate=1m/s)
 Working pressure  1.6 MPa
 Liner material  PFA, F46, Neoprene, PTFE, FEP
 Electrode material  Stainless steel SUS316L, Hastelloy C, Titanium,
 Tantalum, Platinum-iridium
 Medium temperature  Integral type: -10℃~80℃
 Split type: -25℃~180℃
 Power supply  100-240VAC,50/60Hz, 22VDC—26VDC
 Electrical conductivity  > 50μS/cm
 Ingress protection  IP65, IP68
electromagnetic btu meter

An electromagnetic BTU (British Thermal Unit) meter is a device used to measure the heat energy transferred in a heating or cooling system. It operates based on the principles of electromagnetic flow measurement combined with temperature sensors. The meter consists of a flow sensor and temperature sensors. The flow sensor uses electromagnetic induction to measure the volumetric flow rate of the fluid, such as water or glycol, passing through the system. This information is crucial for determining the amount of heat energy being transferred. The temperature sensors are typically installed at the inlet and outlet of the system to measure the temperature difference. By combining the flow rate and temperature difference data, the BTU meter can accurately calculate the amount of heat energy exchanged. The electromagnetic BTU meter is commonly used in various applications, including district heating and cooling systems, HVAC (Heating, Ventilation, and Air Conditioning) systems, and industrial processes. It provides an accurate and reliable measurement of energy consumption, allowing for efficient energy management and billing.

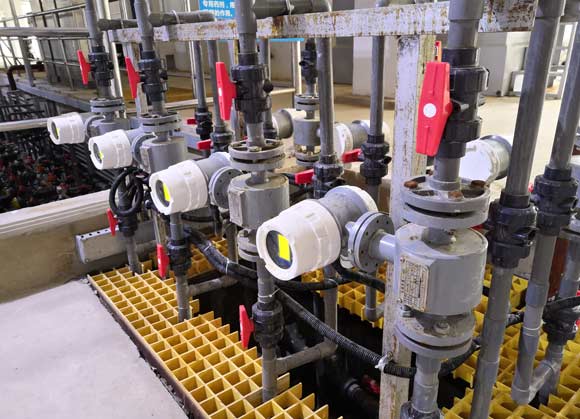

Success cases

The magnetic inductive flowmeter industry, these are successful cases with comparable and reference value.
