SUP-LUGB Vortex Flowmeter With Temperature & Pressure Compensation

SUP-LUGB Vortex flowmeter work on the principle of generated vortex and relation between vortex and flow by theory of Karman and Strouhal, which specialize in measurement of steam, gas and liquid of lower viscosity.

  • Pipe diameter: DN10-DN500
  • Accuracy: 1.0% 1.5%
  • Range Ratio: 1:8
  • Ingress protection: IP65
  • Product Features
  • Product Parameters
  • Product Introduction
  • Simple Structure

    Vortex flowmeter sensor structure is simple, there is no movable parts in the tube, there is no throttle parts that can impede the flow of fluid, is one of the flowmeter products in the operation of low energy consumption flow meter.

  • Wide Range Of Applications

    Electromagnetic flowmeter can measure dirty media, but to be in the measurement process also need to pay attention to avoid contact with corrosive properties of the liquid; and vortex flowmeter can not only measure sewage, but also can measure with corros.

  • Extremely Wide Range Unit

    Vortex flowmeter output is only proportional to the average flow rate of the measured medium, and has nothing to do with the flow state under the symmetrical distribution. Therefore, the vortex flowmeter range unit is extremely wide, its measurement range

  • Steam Flow Can Be Measured

    Vortex flow meters with temperature compensation can measure the flow of steam with guaranteed accuracy due to the use of a galvanometer in the measurement process.

 Product  Vortex flowmeter with temperature & pressure compensation
 Model  SUP-LUGB
 Diameter nominal  DN10~DN500
 Installation  Wafer connection: DN10-DN500(priority PN2.5MPa)  Flange connection: DN10-DN80(priority PN2.5MPa);DN100-DN200(priority PN1.6MPa);DN250-DN500(priority PN1.0MPa)
 Accuracy  1.5%, 1.0%
 Range Ratio  8:1
 Medium Temperature  -20°C ~ +150°C, -20°C ~ +260°C, -20°C ~ +320°C, -20°C ~ +420°C
 Output signal  4-20mA
 Frequency  RS485 communication (Modbus RTU)
 Power supply  24VDC±5%  Li battery(3.6VDC)
 Ingress protection  IP65
 Body Materials  Stainless shell
 Display  128*64 dot matrix LCD
sup-lugb vortex flowmeter

A vortex steam flow meter is a device used to measure the flow rate of steam or other fluids in a pipe. It works by measuring the frequency of vortices created by the fluid as it passes through a bluff body in the pipe. The vortex steam flow meter is particularly useful for measuring the flow of steam in power generation plants, where accurate flow measurement is crucial for efficiency and energy savings. The SUP-LUGB vortex steam flow meter consists of a sensor and a transmitter. The sensor has a bluff body that is placed in the pipe, causing vortices to form downstream of the body. These vortices create pressure fluctuations that are detected by a piezoelectric crystal in the sensor. The transmitter converts the piezoelectric signal into a flow rate measurement that can be used for process control.

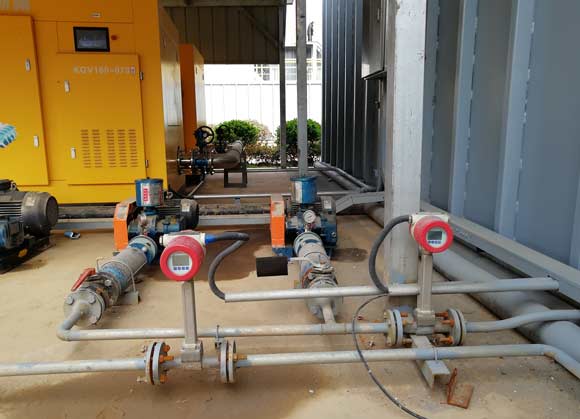

Success cases

The magnetic inductive flowmeter industry, these are successful cases with comparable and reference value.
